Architecture of Cloud App

Note

In this use case, we don’t cover only internal, sensitive or legacy applications. In a real world, customers have applications on-prems and in the public cloud.

Note

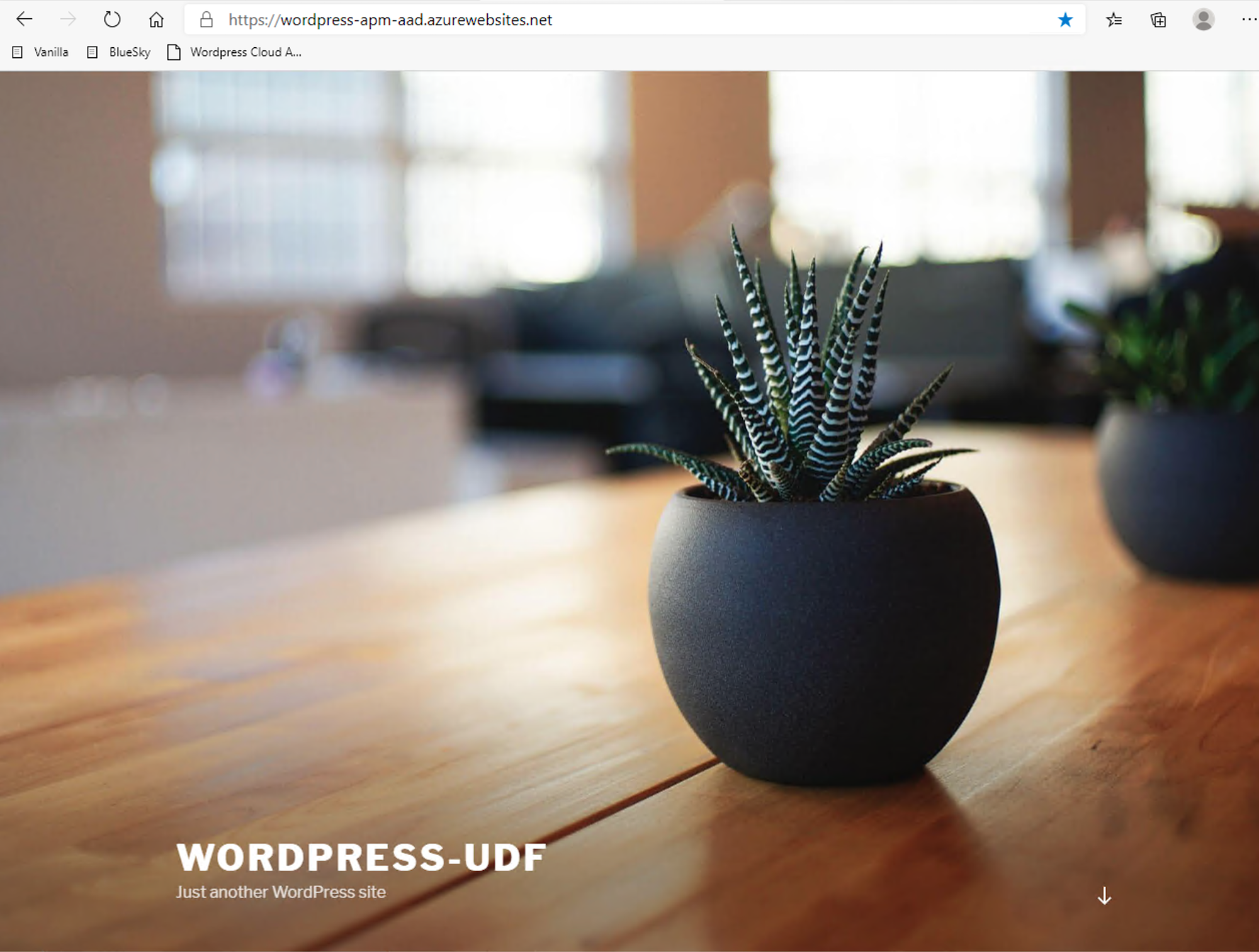

A Wordpress application is already up and running in Azure Cloud at this address https://wordpress-apm-aad.azurewebsites.net/

../../_images/WP_UDF.png

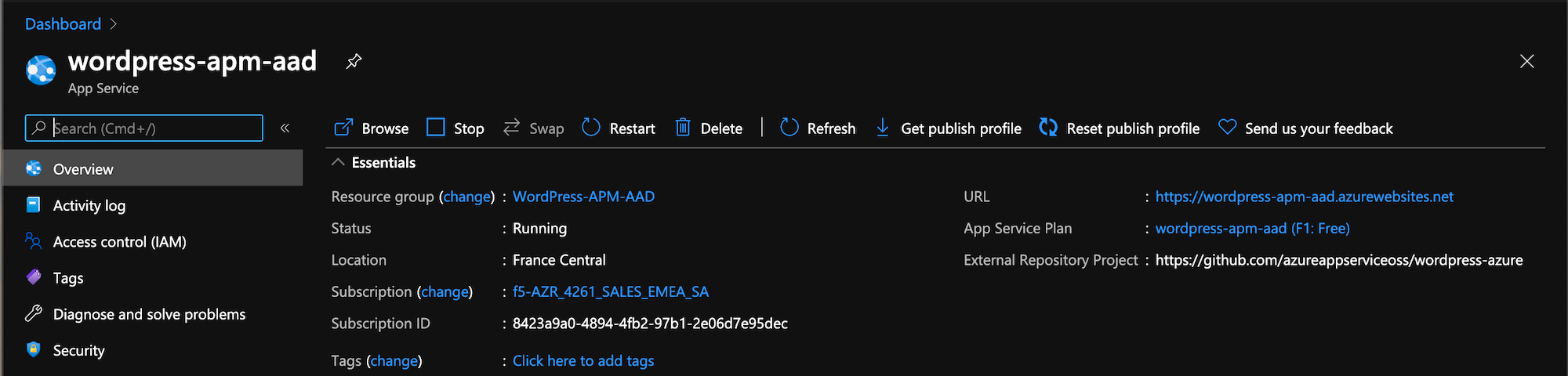

  1. This Wordpress application is an Azure App Service.

    ../../_images/azure.png

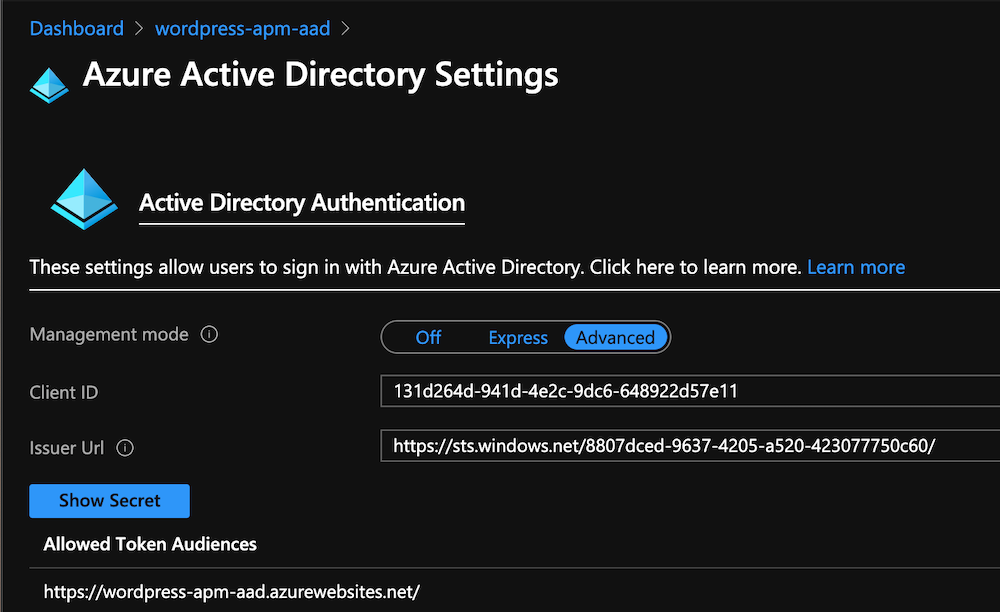

  2. This App Service is already bound with our demo Azure AD tenant.

    ../../_images/OIDC.png

Warning

It is important to note this application is not tied to APM. APM only publishes and protects on-prems apps. All other cloud and SaaS apps are directly connected to Azure AD.
